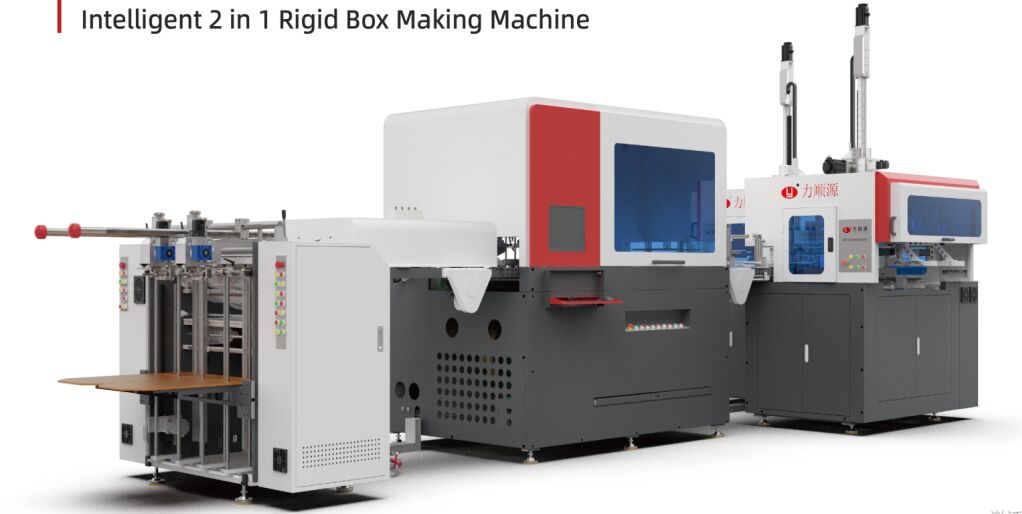

LY-HB3000CZ intelligent 2 In 1 Rigid Box Making Machine
The LY-HB3000CZ Intelligent 2-in-1 Rigid Box Making Machine revolutionizes box production by minimizing changeover time to just 30 minutes, thereby maximizing valuable machine uptime and operational efficiency. At its core, a highly accurate visual robot positioning system—integrating German multi-camera technology and YAMAHA robotic arms—achieves a positioning precision of ±0.05 mm, ensuring flawless alignment for premium packaging applications such as mobile phone boxes, cosmetics boxes, jewelry boxes, and wine box covers.
With dual forming stations and an inline bubble pressing module, the machine delivers exceptional output, reaching up to 66 pieces per minute for single-size production. By seamlessly combining intelligent automation, high-speed forming, and micron-level accuracy, the LY-HB3000CZ empowers manufacturers to produce rigid boxes with outstanding consistency and reduced setup waste, directly enhancing profitability and production agility.
Key Features
- Shortest Change-over-time, thereby saving precious machine time
- Uses highly accurate Visual Robot arm positioning with German multiple camera system
- Dual Forming stations for high output
- Includes in-line Bubble pressing module
- Production speed up to 66 pcs/min for do one size production
- Positioning accuracy ±0.05mm
- Change-over-time (job transfer time) in 30 Minutes
- Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:
| Feeder |
- Feeder is controlled by a servo motor
- Paper-feed-in overturn function
- Big diameter pneumatic vacuum control valves
- The rubber pressure roller for the feeding-in paper
- Antistatic platform for paper
- The automatic lifting function for feeding stack
- Feeding stack auto stop when top paper in position Feeder control by servo motor
- Independent controlled paper feeding table and independently controlled sheet roller.
- Avoid the inconsistency of the length of the paper between the two sheets
|
|
Positioning
|
- YAMAHA Robot Arm for spotting the box
- German Balser camera with Japanese Lens in 10 million Pixel tracing system
- Four Cameras with double robots arms working XY Spool for positioning
|
|
Forming Part & Bubble Pressing
|
- Automatic Setting by servo motors
- Dual Station smart wrapper for increased production
- Virtual cam servo driving system
- Alarm device for collision detection
- Lift the box by holding the side of the box
- Scratch resistant for the paper
- Box-pressing down-side device
|
|
Electric Control System
|
- Automatic control by servo motors for stable operations
- Transfer mold fast, quick adjust machine
|
Technical Specifications
| Paper Size (A*B) |
Double Sides |
Single Side |
| W :60-420mm |
W :60-420mm |
| L :120-700mm |
L :120-700mm |
| Paper Thickness |
80-300g/m2 |
| Cardboard Thickness |
1-3mm |
| Finished Box Size (L*W*H) |
L: 55-450mm |
L :55-450mm |
| W:55-300mm |
W :55-300mm |
| H:12-160mm |
H :12-160mm |
| Precision Accuracy |
±0.05mm |
| Paper Stacking Height |
800mm |
| Max Power |
37KW |
| Production Speed |
25-35 Pairs/MIN |
50-70 PCS/MIN |
| Power Supply |
380V/50Hz |
| Glue Tank Volume |
50KG |
| Air Pressure |
0.5-0.7mpa/min |
| Overall Size of Equipment |
L8100×W6500×H3200mm |
| Max Weight |
7200kg |
