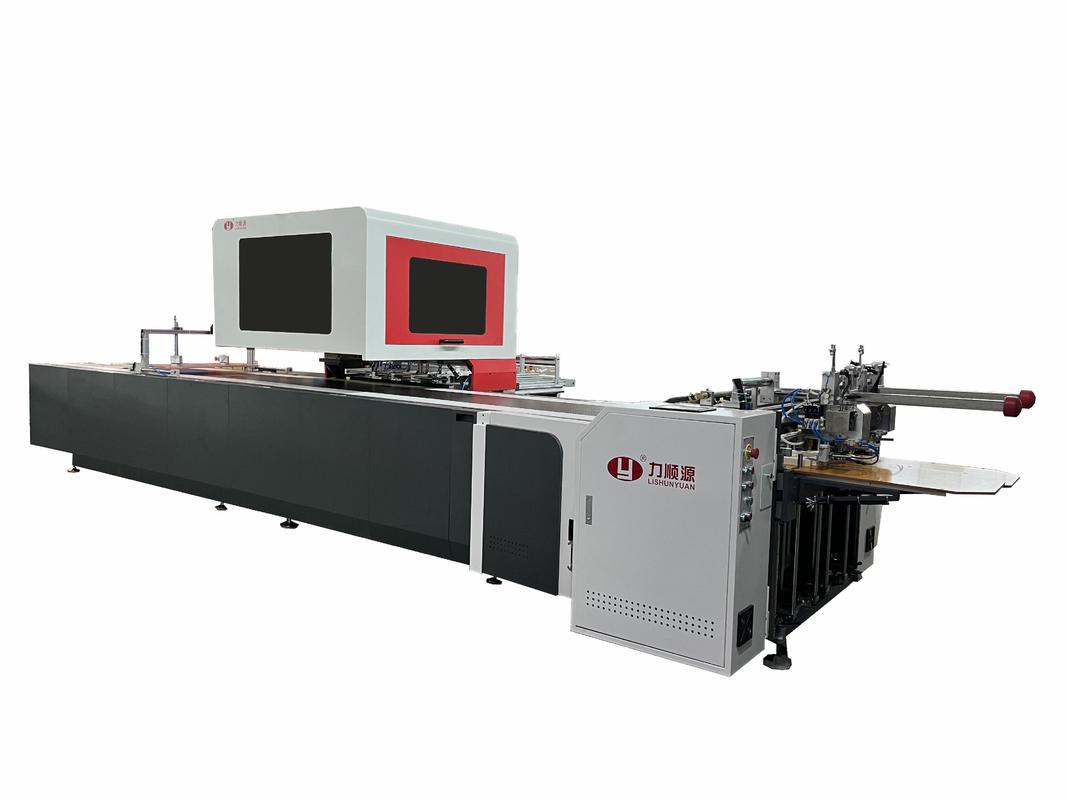

LY-850DN/DM Multifunctional Double Visual Positioning Machine
The LY-850DN/DM Multifunctional Double Visual Positioning Machine features dual feeding positions with independent control, enabling stable operation with different paper thicknesses simultaneously. Independent servo motor control for feeding prevents double sheets and misalignment. Equipped with 4 sets of high-precision cameras and robotic arms, this machine achieves box positioning accuracy of ±0.1mm.

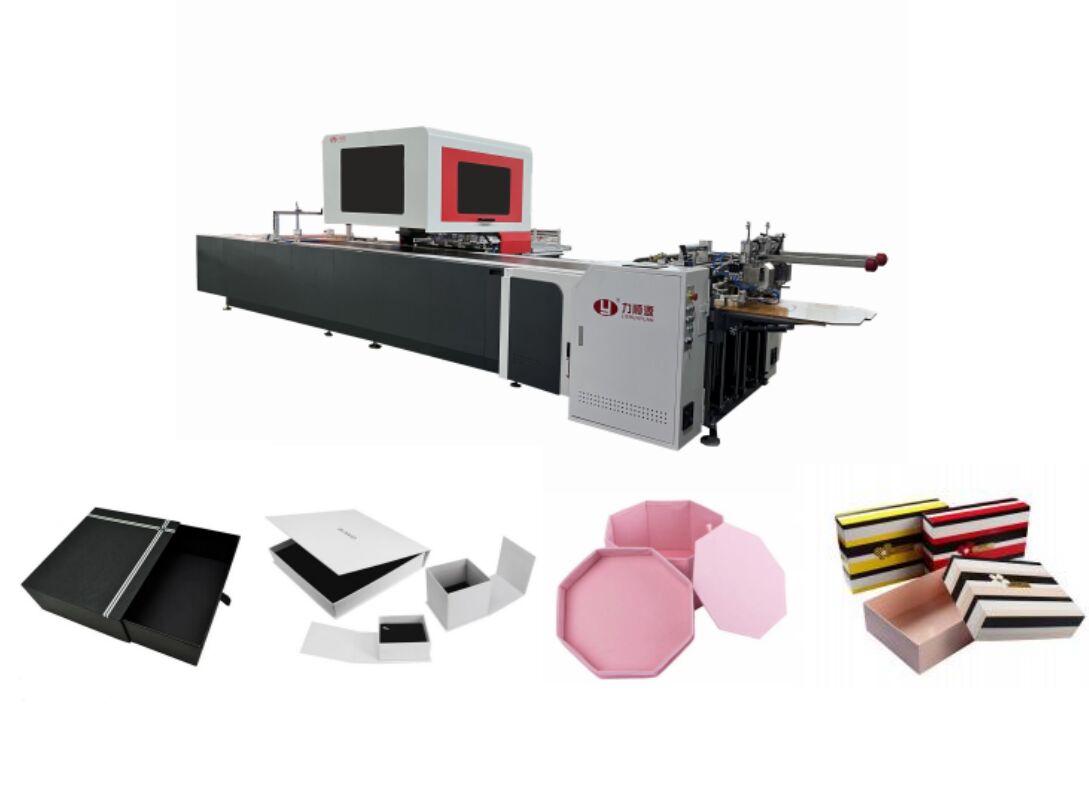

This equipment handles positioning for rigid boxes, bookcases, drawer boxes, irregular shape boxes, and other products. It can integrate with fully-automatic or semi-automatic making machines, including automatic four corner taping machines, forming machines, wine box machines, cover machines, lining machines, and case making machines.
Key Features
- Double feeding position with independent servo motor control for stable operation with different paper thicknesses
- Independent servo motor feeding control prevents double sheets and misalignment
- 4 sets of high-precision cameras and YAMAHA robot arm ensure positioning accuracy of ±0.05mm
- YAMAHA robot arm accurately positions various products including rigid boxes, case makers, coverings, plastic boxes, wooden boxes, and irregular shaped boxes
- Capable of producing Rigid Box and Hard Cover (Case Maker) simultaneously
- Simultaneous box and case production with capacity up to 35-45 PCS/Min
- Easy setup enhances productivity and increases enterprise profit
- Reduces overlapping investment while meeting diverse product demands
Technical Specifications
| Parameter |
Single Sheet |
Double Sheet |
| Paper Size |
W: 80-800mm
L: 120-1000mm |
W: 80-375mm
L: 120-900mm |
| Paper Thickness |
100-350g/m² |
| Cardboard Thickness |
＞2mm |
| Finished Box Size |
L: 65-700mm
W: 65-400mm
H: 5-120mm |
L: 65-350mm
W: 65-350mm
H: 5-120mm |
| Finished Case Size |
L: 65-1000mm
W: 65-500mm |
L: 65-375mm
W: 65-375mm |
| Precision Accuracy |
±0.05mm |
| Max Power |
11KW |
| Min Width of Spine |
30mm |
| Gap of Case |
1-4mm |
| Production Capacity |
25-45 PCS/MIN |
30-45 PCS/MIN |
| Power Supply |
380V/50Hz |
| Machine Dimension |
L7415 × W2510 × H2000mm |
| Machine Weight |
2000kg |
Process Flow Diagrams
For Boxes:
For Hard Cover:
For Sleeve Boxes:
